Airmar B117 50/200kHz 600W MixMatch 0 Deadrise [B117-DT-MM]

B117 50/200kHz 600W Mix & Match 0 Deadrise

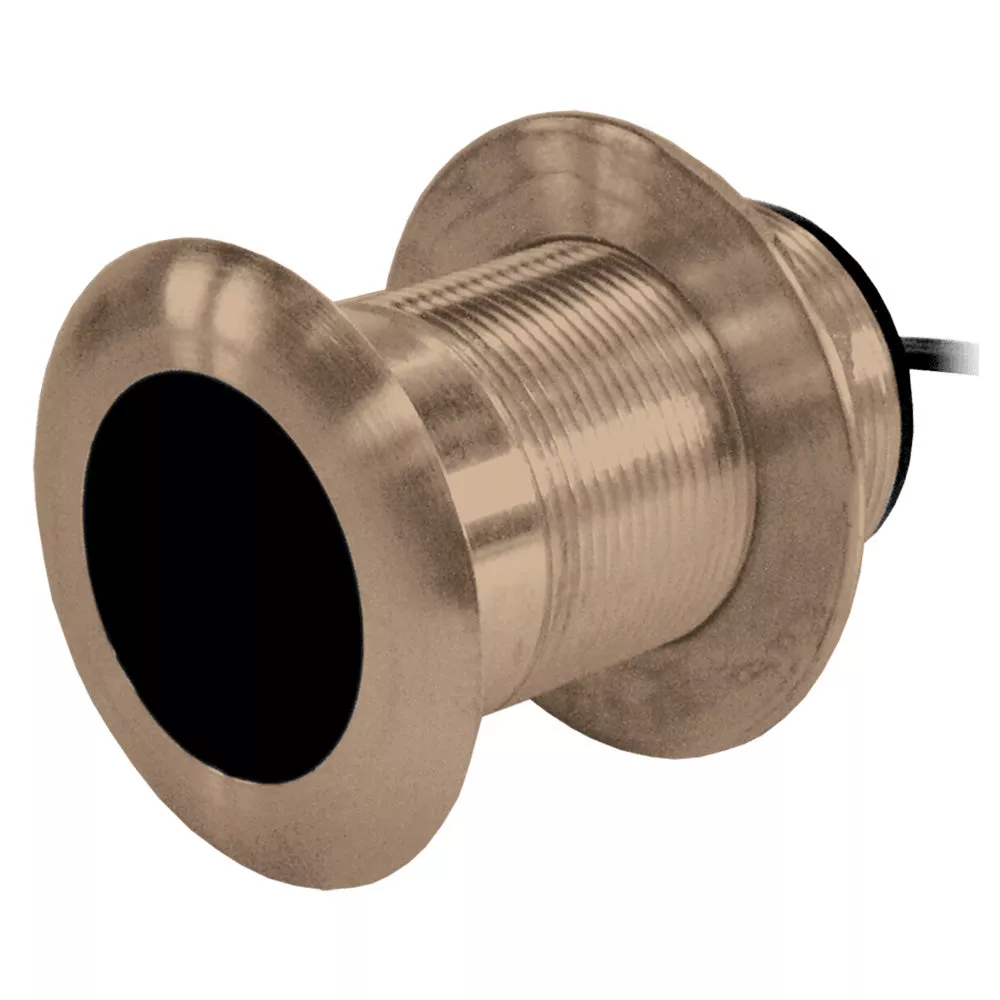

Airmars entry-level B117 features a single, 50/200 kHz, dual-frequency, ceramic element in a low-profile bronze housing. The nearly-flush design minimizes drag with only 5 mm (3/16″) extending outside the hull.

Features:

• Depth only or depth and fast-response water-temperature sensing
• 600 W of power
• Dual-frequency element:
• 50 kHz with a wide 45 beamwidth for depth performance to 353 m (1200′)
• 200 kHz with a 12 beamwidth for depth performance to 206 m (700′)
• Right-angle cable exit saves space and protects the transducer if stepped on
• The included rubber washer allows tightening of the hull nut to irregular hull surfaces
• Low-profile, bronze housing has minimal drag
• Plastic (P319) and stainless steel (SS60) models are also available to accommodate all hull materials

Specifications:

• Power Rating: 600 W
• Max Deadrise Angle: 12
• Housing: Bronze
• Functions: Depth, Temperature
• Hull Material: Fiberglass or wood
• Max Vessel LOA: Up to 8 m (26′)
• Hole Size: 51 mm (2″)
• Acoustic Window: Urethane
• Common Use: Leisure/Yachting, Fishing
• Conventional Beam: 45/12
• Max Deadrise: Best performance through 7. Accommodates up to 12
• Max Depth: Low frequency- 366 m (1200′), High frequency- 206 m (700′)
• Mounting Style: Low Profile Thru-Hull
• Retractable housing: No
• Single or Dual Frequency: Conventional Dual Frequency
• Weight: 0.9 kg (2 lbs.)

This product may not be returned to the original point of purchase.Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Chirp: No
• Imaging: Standard
• Mounting Style: Thru-Hull
• Speed Included: No
• Temperature: Yes
• Box Dimensions: 3″H x 6″W x 8″L WT: 2.6 lbs
• UPC: 801769000238
