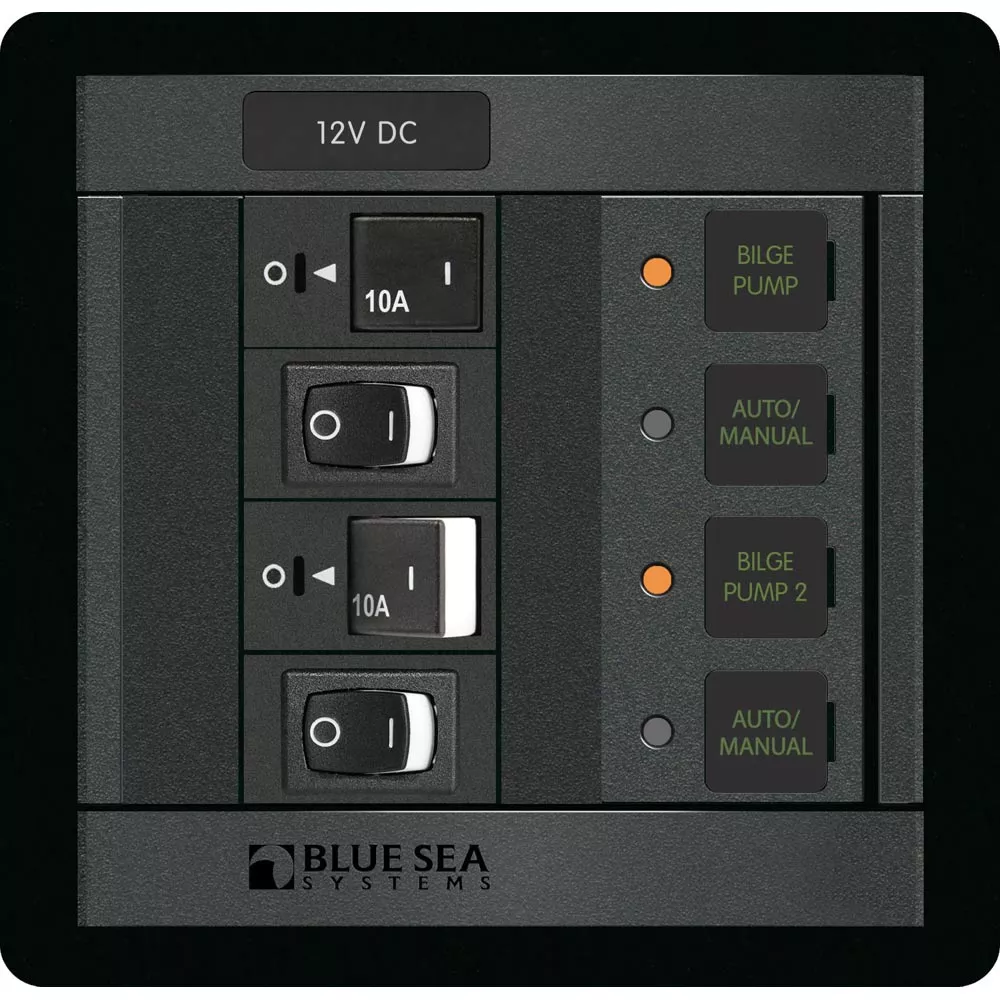

Blue Sea 1522 360 Panel Dual Bilge Pump Control [1522]

360 Panel Dual Bilge Pump Control

Controls two bilge pumps
Restricted-off circuit breakers and manual override switches

• On-indicating LED indicates power is available at the bilge pump float switch
• Restricted-off circuit breakers provide 24-hour circuit protection to the bilge pump float switch
• Manual Override switch with On-indicating LED provides visual indication pump is running; also illuminates when pump is running as a result of float switch operation

Specifications:

• Nominal Voltage:12V DC
• Height:4.75″ (120.65mm)
• Width:4.88″ (123.95mm)

Includes:
(2) – 7427 – A-Series Restricted Off Flat Rocker Circuit Breaker – Single Pole 10A
(2) – 7480 – Rocker Switch SPST – ON-OFF

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• AC/DC: DC
• Box Dimensions: 5″H x 7″W x 9″L WT: 1.3 lbs
• UPC: 632085015220

Quick Guide (pdf)
