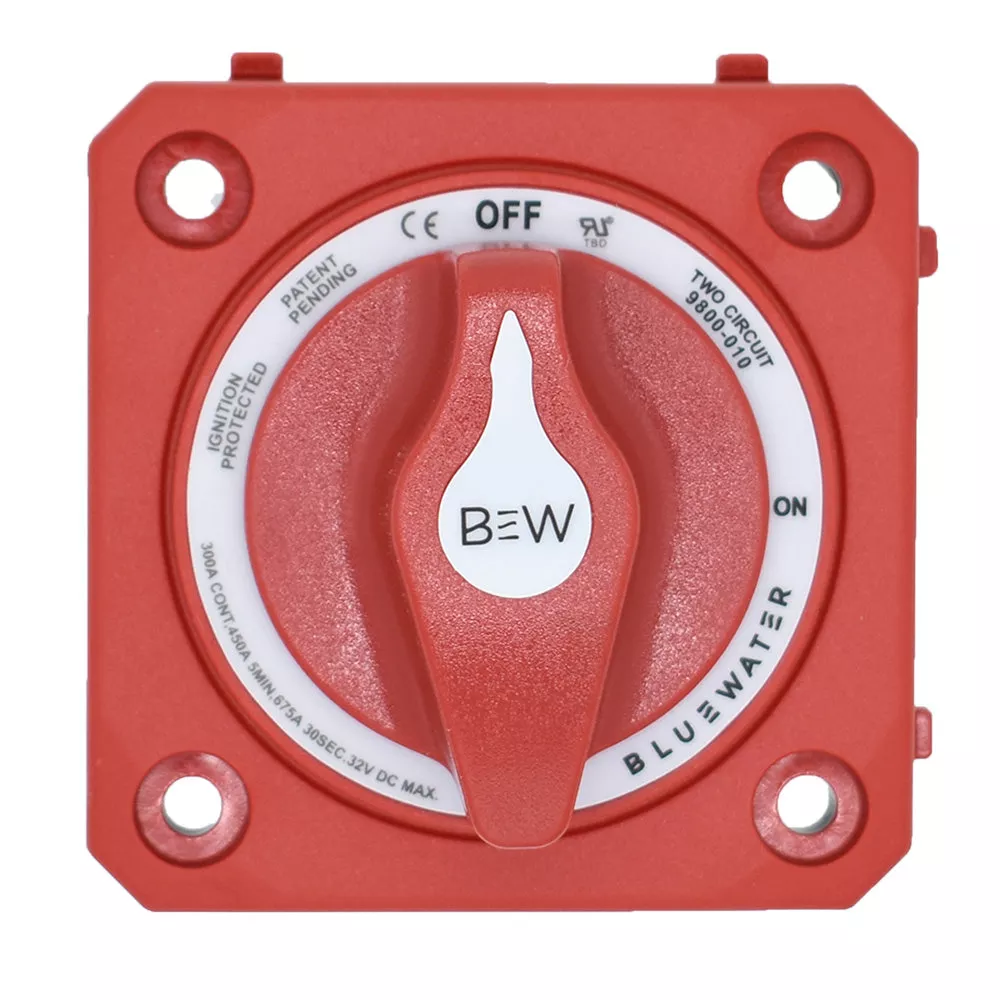

Bluewater On/Off 4 Post Dual Circuit Battery Switch w/o Base – Panel Mount – Red [9800-010-10]

On/Off 4 Post Dual Circuit Battery Switch without Base – Panel Mount – Red

This dual circuit battery switch allows you tocontrol two isolated circuits simultaneouslywith a single action. Its ideal for applications that requireindependent power routing, such as separating ahouse batteryand anengine battery, without risk of cross-connection.

Ignition-protected and safe for use aboard gasoline-powered boats, this dual circuit battery switch is also well-suited formarine and RV systems. The versatile case design supportssurface, front panel, or rear panel mounting.

For maximum reliability, it features3/8-16 tin-plated copper studsthat provide high conductivity and corrosion resistance, accepting both3/8 and M10 ring terminals. The7/8 stud lengthallows for secure connection of multiple cable terminals.

Durable by design, the switch is constructed from marine-grade, non-corrosive metals and housed in reinforced polycarbonate. Tactile knob textures enable position recognition by feel alone, and the unit includes both international ON/OFF legends and an ICON label set for clear circuit identification.

Specifications:

• Continuous Rating: 300 Amps DC
• Intermittent Rating: 450 Amps DC (5 min)
• Cranking Rating: 675 Amps DC (30 sec)
• Max Voltage: 32VDC
• Cable Size: 4/0 AWG

Specifications:

• Continuous Amperage: 300
• Positions: 3
• Box Dimensions: 3″H x 6″W x 9″L WT: 0.75 lbs
• UPC: 810196331204
