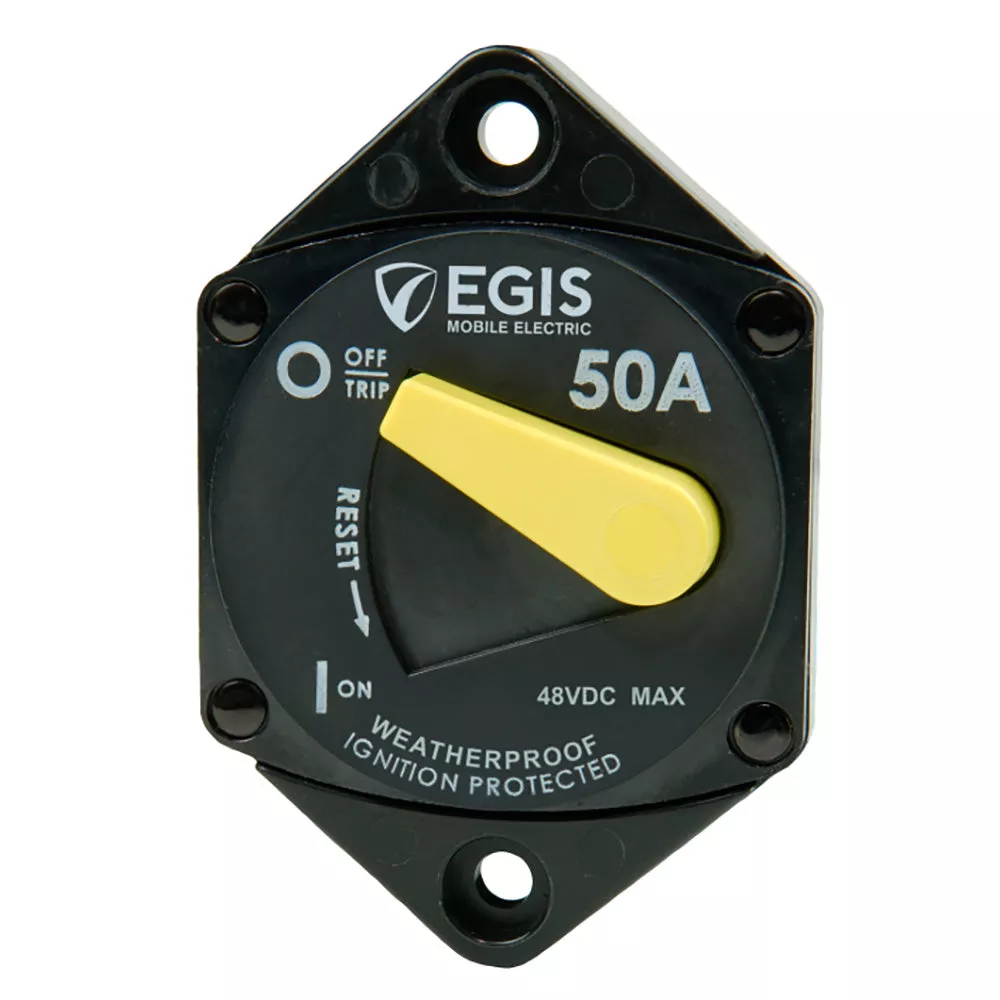

Egis 50A Circuit Breaker – 87 Series – Panel Mount [4707-050]

50A Circuit Breaker – 87 Series – Panel Mount

Features:

• Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation.
• High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications.
• High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current.
• High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power.
• Ignition-protected safe for installation in closed compartments with potential explosive gases.
• Harsh Environment design with stainless-steel hardware, serrated flange nuts, and silicone terminal covers.

Specifications:

• Amperage: 50a
• Box Dimensions: 3″H x 5″W x 6″L WT: 0.45 lbs
• UPC: 850053879036

Brochure (pdf)
