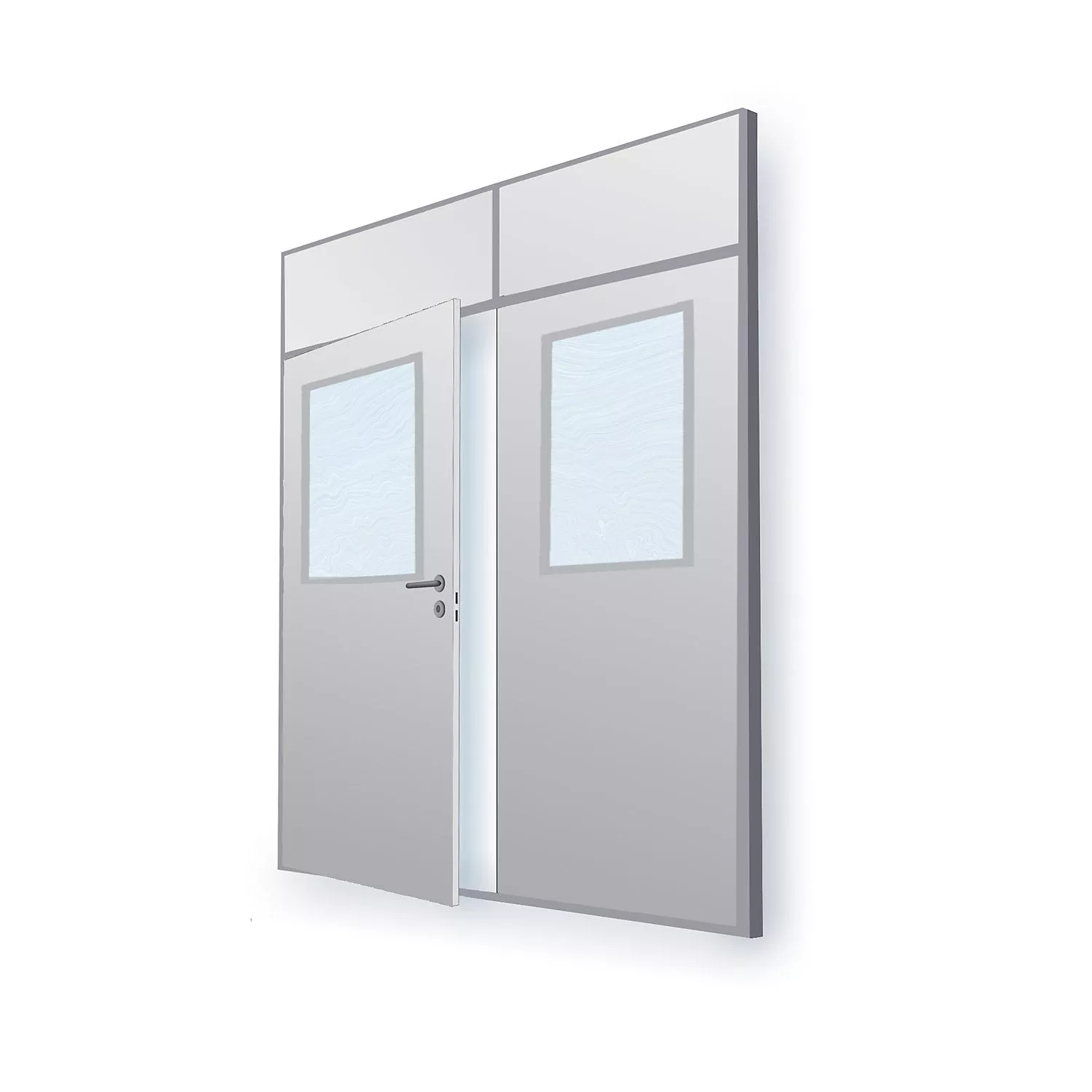

Flexible partition system, wall thickness 82 mm, double door section, HxW 2093 x 1789 mm, with window.

Estimated delivery: 51 days

Flexible partition system, wall thickness 82 mm, double door section, HxW 2093 x 1789 mm, with window

• Supplied = flat pack
• Place of use = indoor use
• Length = 82 mm
• Width = 1789 mm
• Height = 2093 mm
• Material = glass, steel
• Railing height = 1050 mm
• Max. wall height = 10000 mm
• Panel thickness = 82 mm
• Section type = double door module
• Section glazing = safety glass, 5 mm
• Noise insulation = 36 dB(A)
• Available colours = light grey RAL 7035, pure white RAL 9010
• Grid dimensions = 1200 mm
• Colour = –
• Customs tariff number = 73089098
• Country of origin = DEU
• Gross weight = 70 kg
• Weight = 70 kg
• Wall thickness 82 mm
• Sound insulation up to 43 dB
• Can be assembled and disassembled as often as needed
• Can be set up as an office, noise protection cabin or partition
• Sound insulation valuesSolid wall with mineral wool approx. 43 dB Glass section approx. 36 dB Sound insulation values are laboratory values – the more glass walls used, the lower the sound insulation value
• Colour selectionFor walls, window frames, door frames and cover profiles there are two standard colours to choose from: – Light grey RAL 7035 – Pure white RAL 9010Please specify the desired colour when ordering
• Double shell steel frame, primed and painted with RAL colour
• Chipboard door with tubular core, 40 mm thick, with laminated covering
• Mortice lock prepared for cylinder profile provided by the customer, door handles with round keyhole cover
• Optional window made of 5 mm thick single pane safety glass
• Window dims.: Single door 870 x 605 mm
• Double door 870 x 605 or 870 x 480 mm
• Additional RAL colours available on request.
