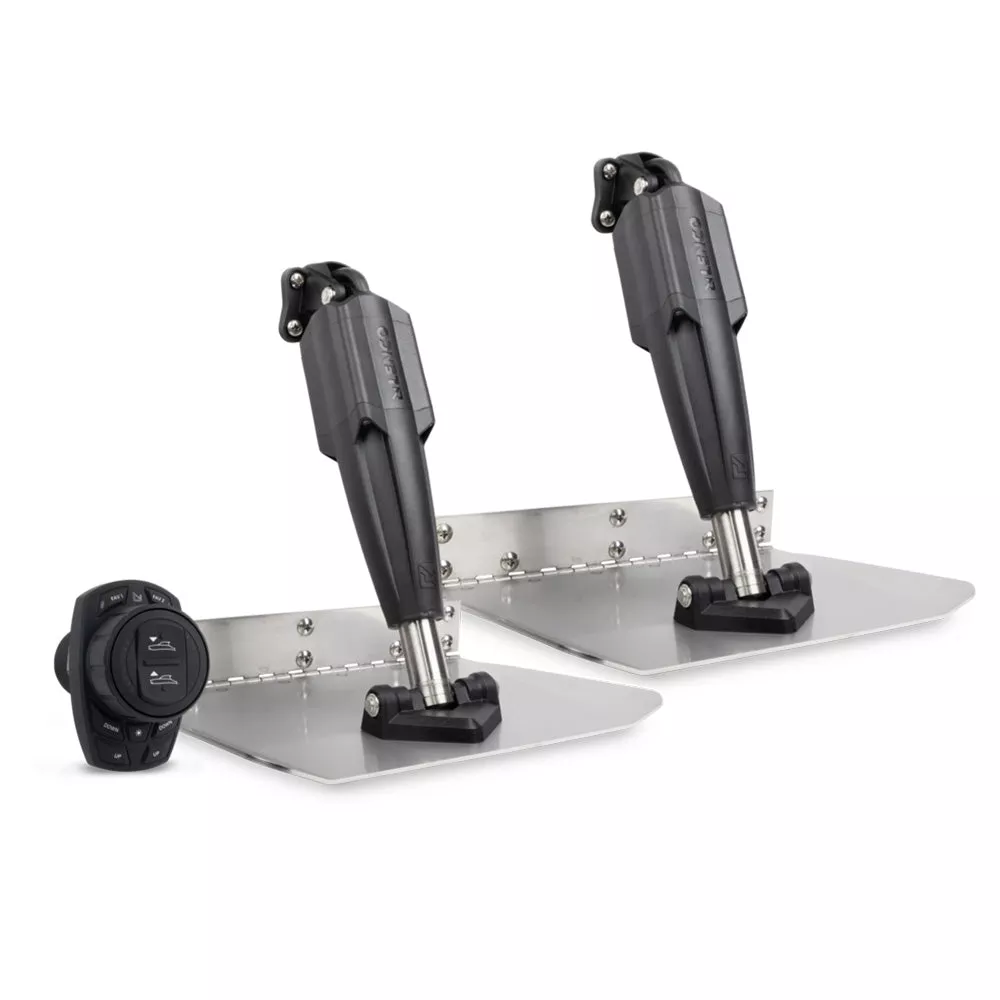

Lenco 9″x12″ STD Trim Tab Kit w/Pro Control Assist [15181-106]

9″x12″ STD Trim Tab Kit with Pro Control Assist

Features:

• Industry-leading connectivity – CAN-based protocol comes as standard, meaning ease of system integration and installation.
• Ease of useprecise control – Smart, sleek intuitive dial controller, designed to provide responsive precision controls.
• Instant access to favorite settings – Programmable memory position recall capabilities allow access to your two preferred trim tab settings at the touch of a button.
• Hands-free holeshot – Speed-based automatic deployment of the trim tabsengage throttle and tabs deploy to get the boat on the plane quicker, plus automatic retract at slower speeds with no manual operation required.
• Built to last – Best-in-class 5-year warranty gives peace of mind to both boatbuilders and end users. Simple maintenance extends lifespan.

Specifications:

• Length x Width: 9″x12″
• Boat Length: 16′-25′
• Hinge Height: 2″ (5.1cm)
• Minimum Transom Height: 14″ (35.6cm)
• Keypad: Assist

Kit Includes:

• (1) Pro Control Assist Keypad (15175-106)
• (2) 12-gauge 304 (2.7 mm) stainless steel standard finish blades:
• Standard blades – with a 5/8″ (1.6 cm) flared trailing edge.
• Edge Mount blades – with 1″ (2.5 cm) turned-up edges a 5-degree taper on both sides to the trailing edge) and a 1/8″ (3.2 mm) diameter hinge pin.
• (2) 2.25 Stroke SD Pro Actuators, 11.5 pin to pin (15189-001)
• (5) Micro C Tee Connector (30267-001D)
• Micro C Power Cable with Fuse and Ground (15197-101)
• (2) 6 (1.82 m) Micro C Drop cables (15199-101), (1) 25 (7.62 m) (30269-004) Micro C Drop cable
• (2) 6 Pin Deutsch to Micro C Actuator Network Adapter Cable (30377-001)
• (2) 3′ (.91 m) Pro Control Actuator Power Pigtail (30378-001)
• (1) Wake Signal Adapter for Non-Mercury Systems (15207-101)
• (2) Corrosion proof Upper Mounting Brackets with gland seal (15193-101)
• (2) Corrosion-proof Lower Mounting Brackets (15194-101)
