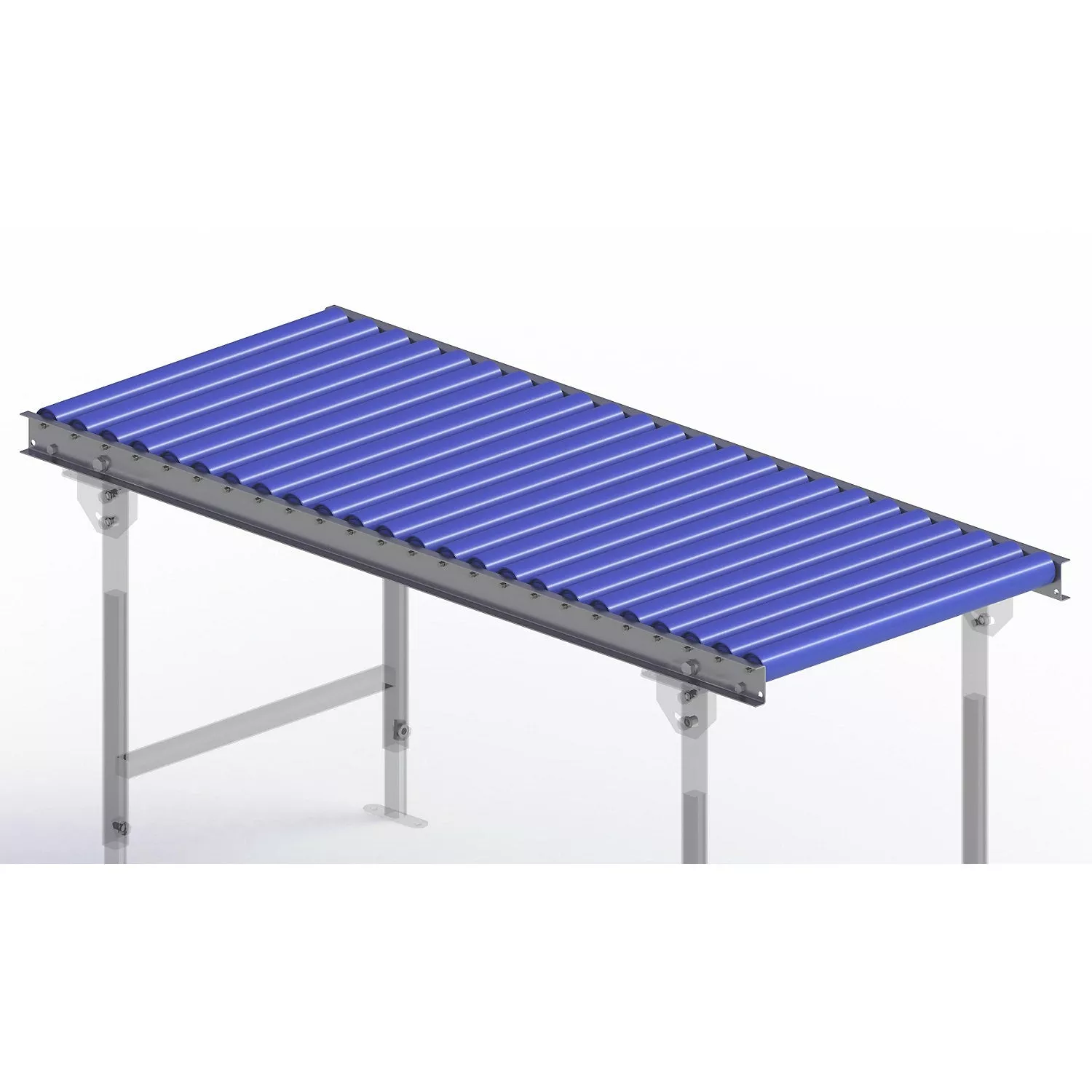

Light duty roller conveyor, steel frame with plastic rollers, track width 600 mm, axle spacing 62.5 mm, length 1.5 m.

Estimated delivery: 41 days

Light duty roller conveyor, steel frame with plastic rollers, track width 600 mm, axle spacing 62.5 mm, length 1.5 m

• Supplied = assembled
• Design of frame = steel, zinc plated
• Track width = 600 mm
• Overall height = 70 mm
• Width = 640 mm
• Length = 1.5 m
• Roller diameter = 50 mm
• Roller material = plastic
• Axle spacing = 62.5 mm
• Length of goods conveyed = 189 – 1000 mm
• Width of goods conveyed = 750 mm
• Max. load with 1 m frame support spacing = 200 kg
• Installation length = 603 mm
• Tube length = 586 mm
• Frame colour = silver
• Model = straight
• Product type = light duty roller conveyors
• Customs tariff number = 84283920
• Country of origin = DEU
• Gross weight = 37.64 kg
• Weight = 24 kg
• Sustainability = CO 2footprint calculated
• Optimises the material flow in the company
• Modular system, making it individually adjustable
• A very low empty weight makes it suitable for flexible use
• This lightweight roller conveyor from GURA improves the material flow within a company quickly and easily
• The versatile modular system allows individual adjustment to suit your requirements
• Sturdy side profiles made of steel with 20 x 60 x 20 mm
• Ball bearing mounted plastic rollers,50 mm or sprung axle with8 mm
• Designing your conveyor:– Assemble required conveyor length from individual sections
• Determine required number of straight and curved sections.– Determine track width according to largest dimension of goods to be transported and axle spacing of the rollers according to smallest dimension of goods to be transported.– With 75 mm axle spacing the effective length for 1 m = 975 mm, for 2 m = 1950 mm.–Use our individual CAD planning service for comprehensive complete planning
• Supplied without double stands, quick connectors, protective caps and side guide rails
• Custom models, 45 curves and passages upon request.
