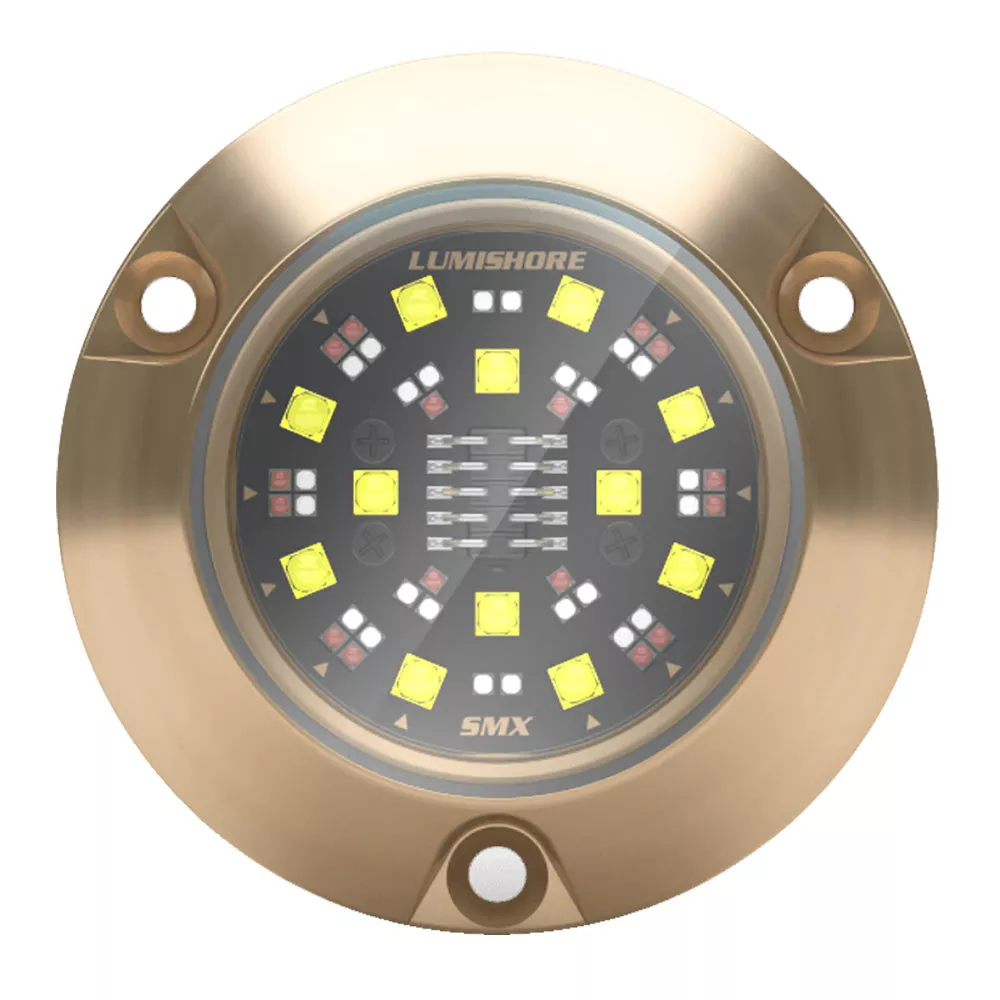

Lumishore ECLIPSE SMX94 Single Surface Mount Underwater Light [010-04506-00]

ECLIPSE SMX94 Single Surface Mount Underwater Light

As well as efficiency and performance, the SMX94 is unmatched in ease of installation due to its built-in driver and simple 2-wire connections.

Enjoy full-spectrum RGBW color change lighting that packs a powerful 6,000 fixture lumens into a wide 90 beam.

Control the SMX94 with a standard on/off switch to cycle through colors; toggle to pause on any color in the spectrum or the ECLIPSE Command Center.

Suitable for stepped hulls, transoms, and hull side installations.

Specifications:

• Available Colors: Full Spectrum RGBW Color Change
• Lumens: 13,500
• Fixture Lumens (White): 6,000
• Number & Type Of LED: White125W / Green123W / Blue123W / Red163W
• LED Power – HICOB Array: Yes
• Typical LED Life: 50,000+ Hours
• Warranty: 3 Years
• User Control Options: On/Off Switch (Third-party supplied) ECLIPSE Command Center
• Electrical Installation: Simple 2-Wire Connection ECLIPSE Command Center
• Housing Type: Marine Bronze Body with Borosilicate Glass Lens
• Compact Size: Diameter: 70mm (2.75) Height: 17mm (0.67)

Specifications:

• Color: RGBW
• Material: Bronze
• Mounting Style: Surface
• Voltage – Input Range (Volts): 12/24v
• Box Dimensions: 4″H x 4″W x 4″L WT: 1.1 lbs
• UPC: 847772003903

Quick Guide (pdf)
