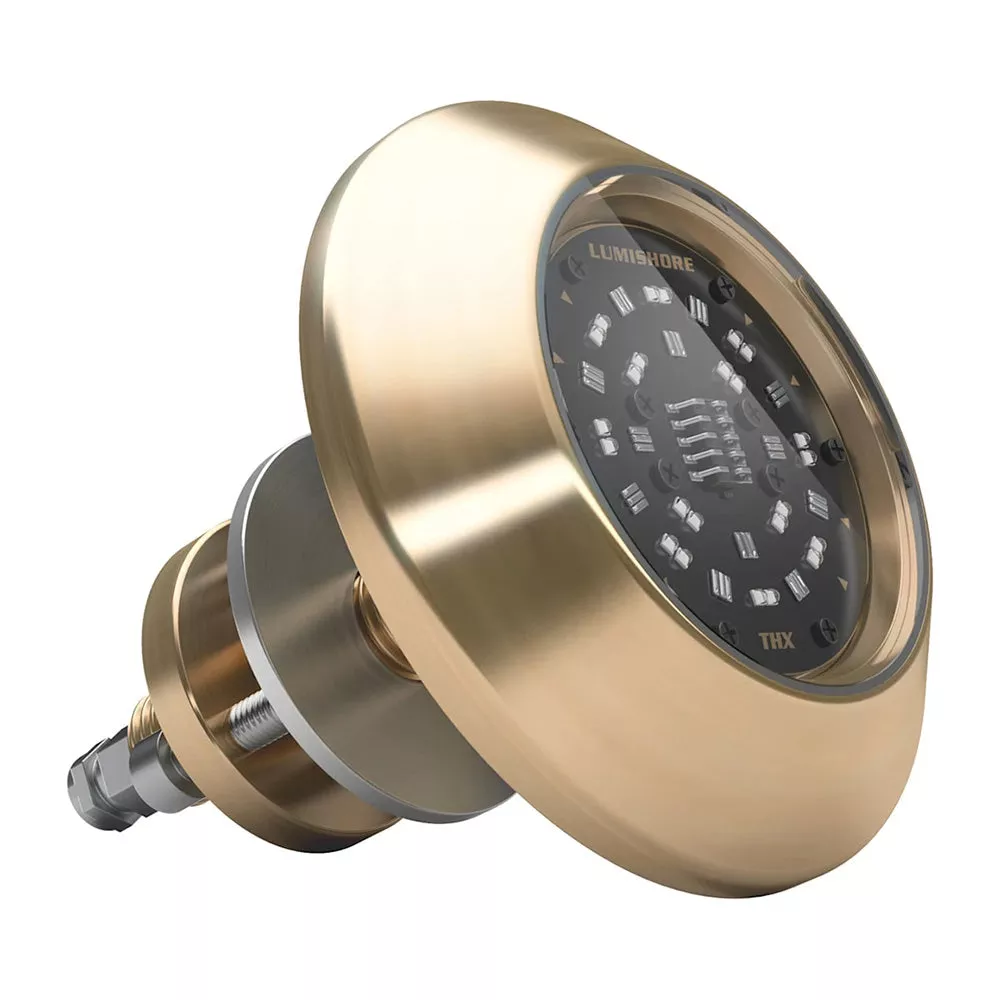

Lumishore ORA THX204 Thru-Hull Single Light White [010-04515-00]

ORA THX204 Thru-Hull Single Light White

Lumishore’s ultra-slim thru-hull THX204 has a small hull cut-out requirement of only 5/8 (16.5mm).

The THX204 features 6,100 fixture lumens and an ultra-wide 110beam angle, allowing the light to saturate deep into the water.

With a simple 2-wire installation and no external drivers, it’s one of the easiest thru-hull lights to install and is suitable for transom, side hull, or bottom installations.

Control the THX204 with a standard on/off switch.

Specifications:

• Color: White
• Lumens: 13,725
• Fixture Lumens (White): 6,100
• Number & Type Of LED: White – 12 x 10W High Power LEDs
• LED Power – HICOB Array: Yes
• Typical LED Life: 50,000+ Hours
• Warranty: 3 Years
• User Control Options: On/Off Switch (Third-party supplied)
• Housing Type: Marine Bronze Body with Borosilicate Glass Lens

Specifications:

• Color: White
• Material: Bronze
• Mounting Style: Thru-Hull
• Voltage – Input Range (Volts): 12/24V
• Box Dimensions: 4″H x 4″W x 7″L WT: 2.15 lbs
• UPC: 847772004108

Quick Guide (pdf)
