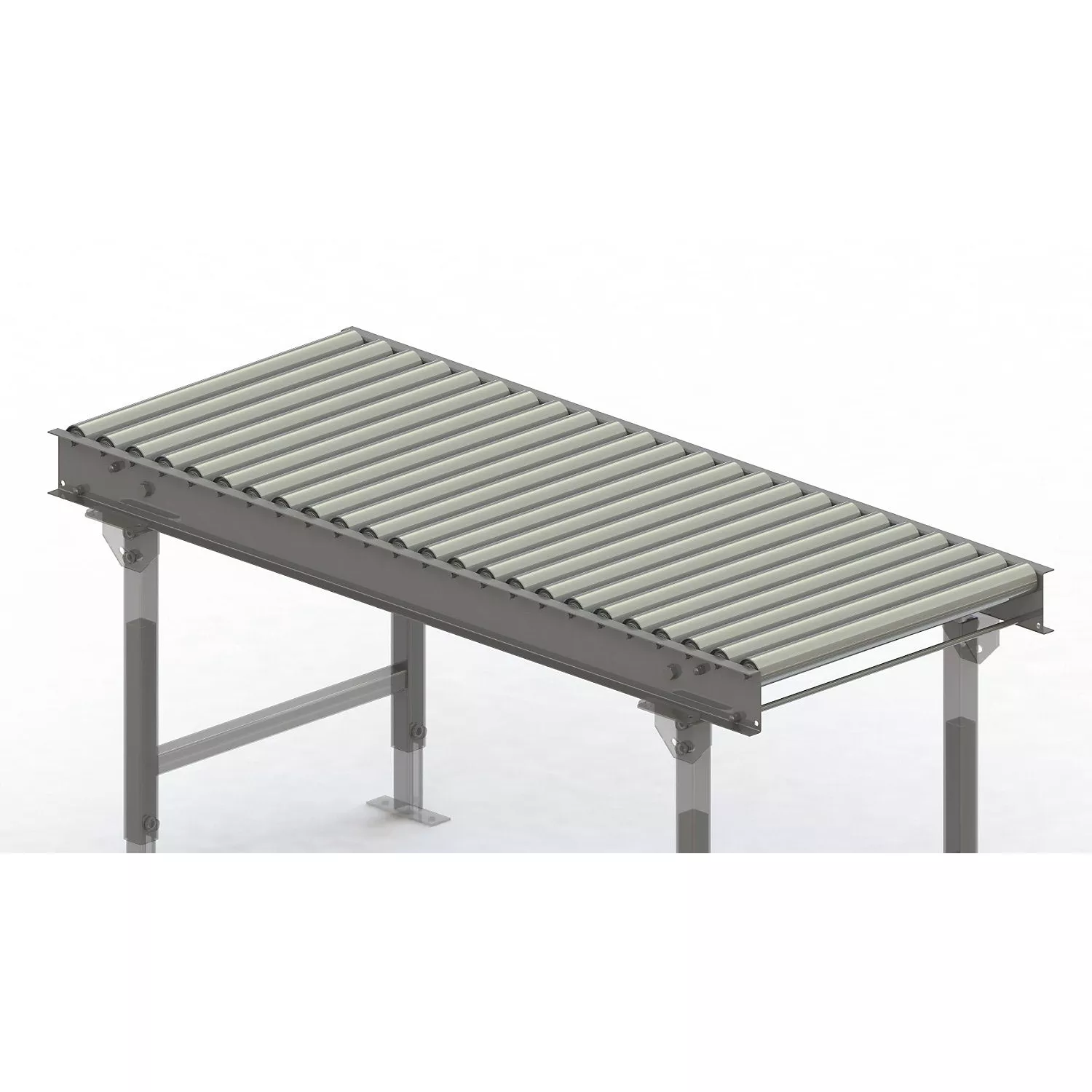

Roller conveyor, steel frame with zinc plated steel rollers, track width 600 mm, distance between axles 100 mm, length 1 m.

Estimated delivery: 41 days

Roller conveyor, steel frame with zinc plated steel rollers, track width 600 mm, distance between axles 100 mm, length 1 m

• Supplied = assembled
• Design of frame = steel, zinc plated
• Track width = 600 mm
• Overall height = 110 mm
• Width = 650 mm
• Length = 1 m
• Roller diameter = 50 mm
• Roller material = steel, zinc plated
• Axle spacing = 100 mm
• Length of goods conveyed = 350 mm
• Width of goods conveyed = 800 mm
• Max. load with 1 m frame support spacing = 400 kg
• Frame colour = silver
• Model = straight
• Product type = roller conveyors, heavy duty
• Customs tariff number = 84283920
• Country of origin = DEU
• Gross weight = 43.72 kg
• Weight = 34 kg
• Sustainability = CO 2footprint calculated
• Optimises the material flow in the company
• Modular system, making it individually adjustable
• This roller conveyor from GURA improves the material flow within a company quickly and easily
• The versatile modular system allows individual adjustment to suit your requirements
• U-profile frame made of zinc plated steel 25 x 100 x 25 x 2 mm, with robust cross pieces
• Ball bearing mounted, zinc plated steel rollers,50 mm, with sprung axle,12 mm
• Designing your conveyor:– Assemble required conveyor length from individual sections
• Determine required number of straight and curved sections. – Determine track width according to largest dimension of goods to be transported and axle spacing of the rollers according to smallest dimension of goods to be transported
• Use our individual CAD planning service for comprehensive complete planning
• Supplied without double stands, quick connectors, protective caps and side guide rails
• Custom models, 45 curves and passages upon request.
