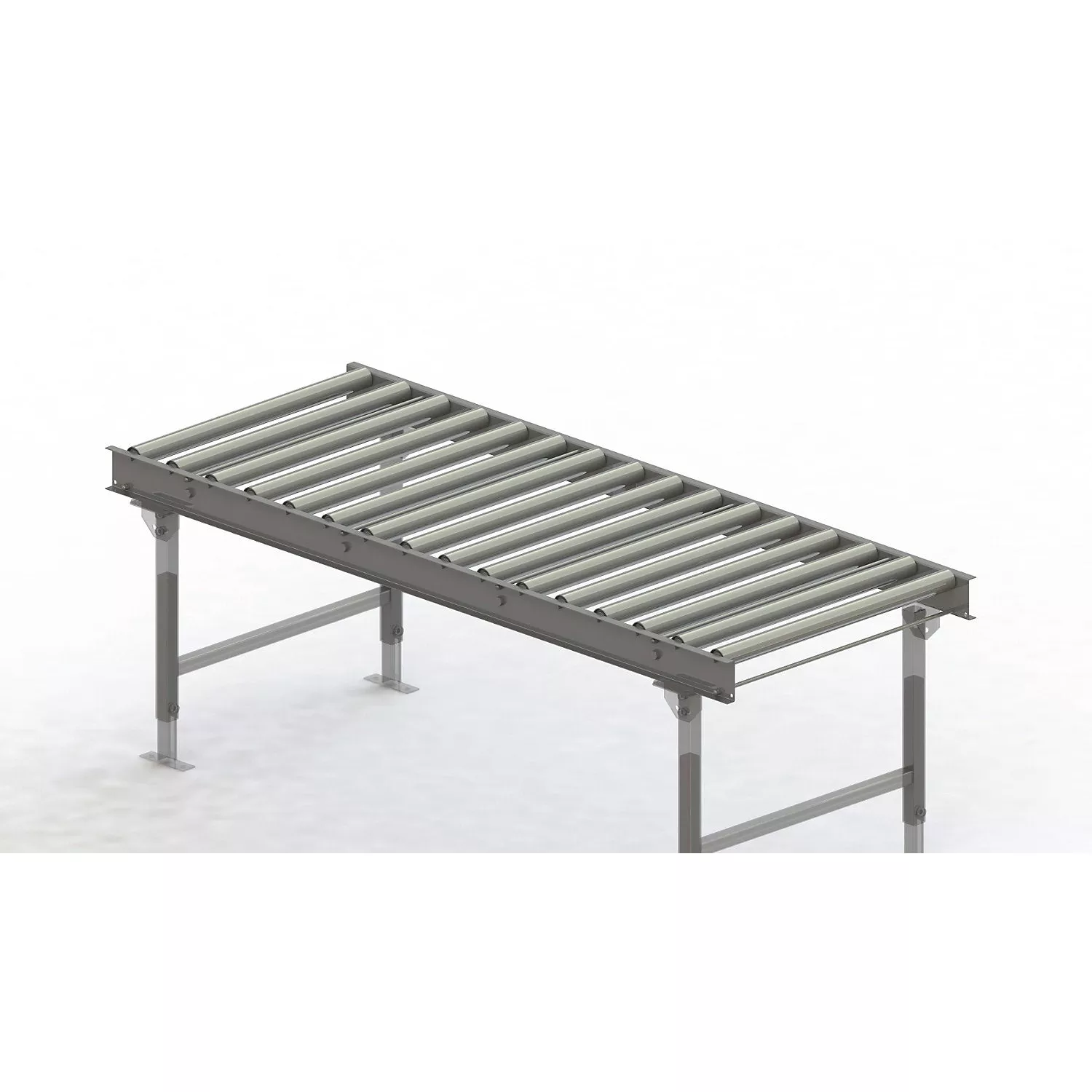

Roller conveyor, steel frame with zinc plated steel rollers, track width 750 mm, distance between axles 100 mm, length 2 m
Supplied = assembled
Design of frame = steel, zinc plated
Track width = 750 mm
Overall height = 110 mm
Width = 800 mm
Length = 2 m
Roller diameter = 50 mm
Roller material = steel, zinc plated
Axle spacing = 100 mm
Length of goods conveyed = 350 mm
Width of goods conveyed = 1000 mm
Max. load with 1 m frame support spacing = 400 kg
Frame colour = silver
Model = straight
Product type = roller conveyors, heavy duty
Customs tariff number = 84283920
Country of origin = DEU
Gross weight = 104.64 kg
Weight = 82.4 kg
Sustainability = CO 2footprint calculated
Optimises the material flow in the company
Modular system, making it individually adjustable
This roller conveyor from GURA improves the material flow within a company quickly and easily
The versatile modular system allows individual adjustment to suit your requirements
U-profile frame made of zinc plated steel 25 x 100 x 25 x 2 mm, with robust cross pieces
Ball bearing mounted, zinc plated steel rollers,50 mm, with sprung axle,12 mm
Designing your conveyor:– Assemble required conveyor length from individual sections
Determine required number of straight and curved sections. – Determine track width according to largest dimension of goods to be transported and axle spacing of the rollers according to smallest dimension of goods to be transported
Use our individual CAD planning service for comprehensive complete planning
Supplied without double stands, quick connectors, protective caps and side guide rails
Custom models, 45 curves and passages upon request.
