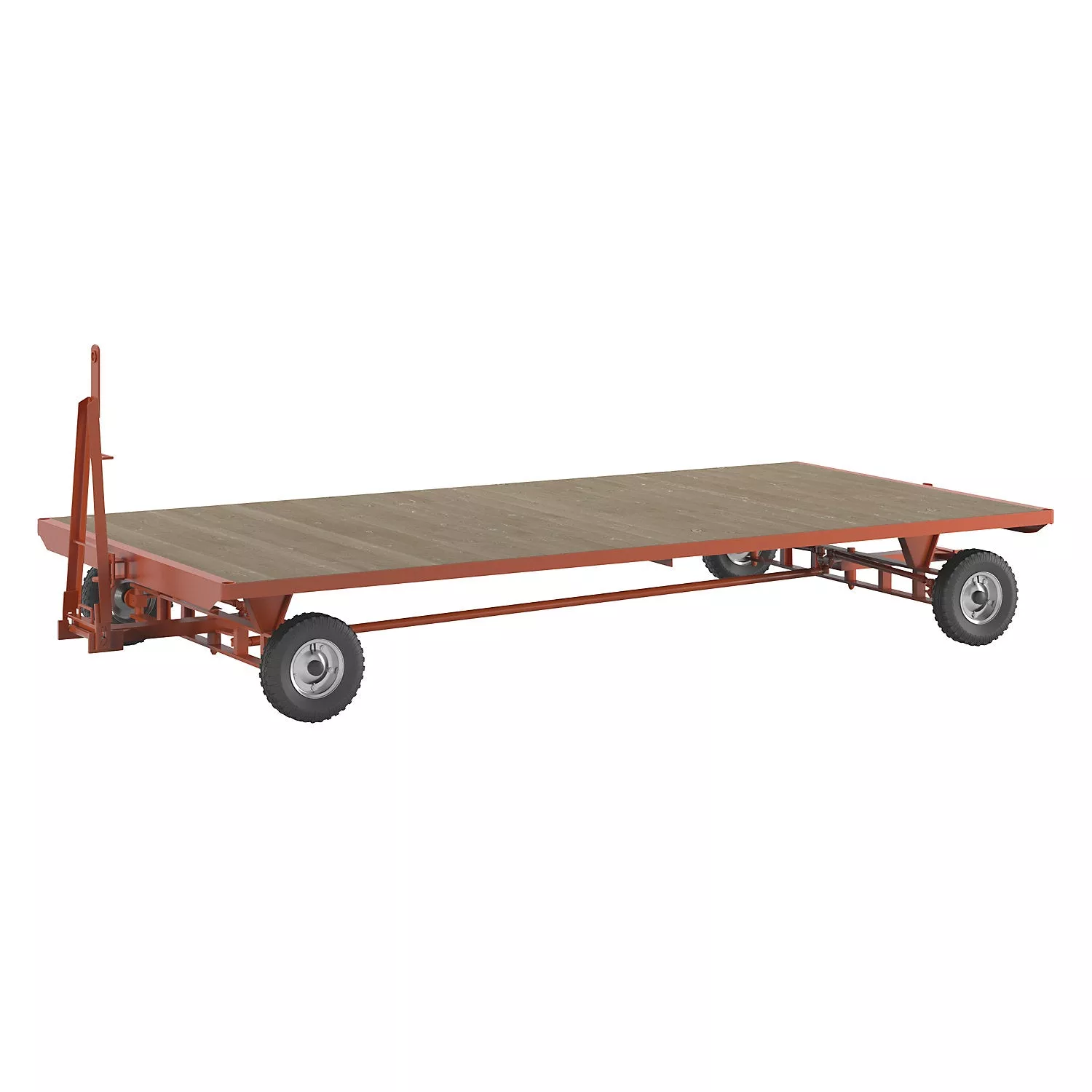

Trailer, 4-wheel linked ackerman steering, max. load 3 t, platform 4.0 x 2.0 m, pneumatic tyres.

Estimated delivery: 76 days

Trailer, 4-wheel linked ackerman steering, max. load 3 t, platform 4.0 x 2.0 m, pneumatic tyres

• Supplied = assembled
• Max. load at 6 km/h = 3 t
• Platform length = 4000 mm
• Platform width = 2000 mm
• Loading height = 570 mm
• Steering = 4-wheel axle knuckle
• Platform material = wood coating, treated with preservative
• Type of tyre = single tyre
• Feature = detachable drawbar
• Finish = painted
• Wheel type = pneumatic tyres
• Wheel width = 112 mm
• Wheel diameter = 414 mm
• Colour = pure orange RAL 2004
• Steering radius = 40
• Towing eyelet diameter = 35 mm
• Product type = industrial trailers
• Customs tariff number = 87163950
• Country of origin = DEU
• Gross weight = 525 kg
• Weight = 525 kg
• Sustainability = CO 2footprint calculated
• Small turning circle – steering radius 40
• Detachable drawbar, trailer coupling on both sides
• Precision tracking stability
• Track rods and steering rods with maintenance free ball heads
• Impregnated wooden platform for weather resistant and non-destructive load support
• Robust welded steel construction
• Low maintenance
• Durable
• In line with workplace safety regulations for transport vehicles
• ChassisFrame construction with rounded corners
• Pipe corners for attaching posts or side panels, or as tie-down eyes
• Pine laminate, hard-wearing varnish
• Trailer coupling
• Wheel typeSolid rubber or pneumatic tyres
• Hubs with double ball bearings
• PaintworkPure orange RAL 2004
• All-wheel Ackerman steering,tracking stability
• Triangle drawbar, height adjustable with fall arrest
• The technical specifications for these trailers makes it necessary to manufacture them to order
• For this reason, please be aware that there is no right of return for these items
• On requestParking brake, rubber axle and lead spring, CSE tyres, side walls, weather protection structure, lighting, sheet metal covering, stanchions, compressed air brake, mesh panel, mesh construction and folding aluminium side panels, folding loading ramps, electric brake, special paint finish, support feet, long material trailer, long material trailer with adjustable rear vehicle, special trailer with overrun brake, drawbar height adjustment mechanism, cropped drawbar, fixed bogie, dual action wheel chock with chain and bracket, cranked drawbar with drawbar height adjustment mechanism, low loader, low loader with hand crank parking brake, low loader with weather protection structure and other accessories
